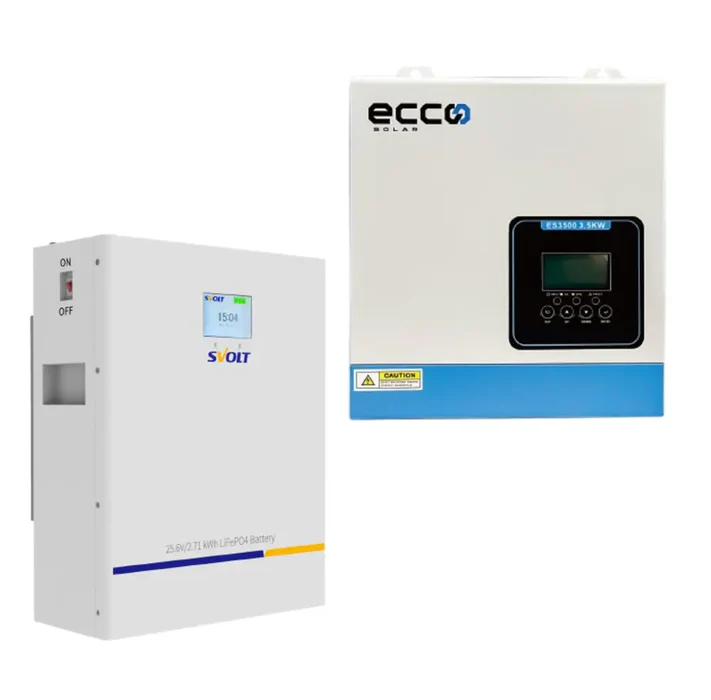

ECCO Inverter and Battery Combo 3.5kva / 3500w Mppt SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery
Ecco Solar 3.5 Kva Hybrid Inverter 24v 3500w Mppt 100A High Voltage Inverter Pure Sine Wave
Inverter Mode :
Rated Power : 3500VA/3500W
Nominal Voltage : 24V
Ac Charger Mode :
AC Input : 230VAC 50/60HZ
MAX Charge Current : 60A
Max Charger Current AC+PV : 100A
AC Ouptut : 230VAC
Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 30VDC
Max Solar Voltage (VOC) : 500VDC
Max MPPT Charge Current : 100A
SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery CNN2511
is manufactured by a world-leading manufacturer SVOLT using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
Features:
– A-Grade Cell Technology
– Maintenance-free
– Environmental Friendly
– Wide Variety of Markets
– Renewable Energy
– 7 Protection Features
– Built-in Battery Management System
– Mountable
– 5-year Warranty
Battery Specifications:
– Energy: 2.71kWh
– Battery Type-Chemistry: LiFePO4
– Nominal Voltage: 25.6V
– Nominal Capacity: 106Ah
– Energy Density: 2713.6Wh
– Terminal Type: Fast Plug In & Plug Out
– Case Material: SPCC
– BMS Built-in: Yes
– LCD Screen
– Internal Resistance: – Efficiency – Round Trip: >99%
– Self Discharge per Month: – Max Parallel Connectors: 16Pcs
– Series Connections: Not Allowed
– Cycle Life(0.2C, 25 C @ 80% DOD): >6000 Cycles
– Discharge Temperature: -20 C to 65 C
– Charge Temperature: 0 C to 50 C
– Storage Temperature: -10 C to 30 C
– Voltage Window: 21.6V – 29.2V
– Recommended Charge Voltage: 28.8 0.20V
– Max Charge Voltage: 29.2 0.20V
– Recommended Charge Current: 50A
– Max Continuous Charge Current: 100A
– Recommended Discharge Voltage: 22.4 0.20V
– Max Discharging Voltage: 21.6 0.20V
– Max Continuous Discharge Current: 100A
– Peak Discharge Current: 150A
– Dimensions: L47 x W35 x H15.5 (cm)
– Weight: 28kgs
BMS Characteristics:
– Primary Charging Protection: (Current: 106A) (Delay Time:1000ms)
– Secondary Charging Protection: (Current: 110A) (Delay Time:500ms)
– Primary Discharging Protection: (Current: 110A) (Delay Time: 5s 2s)
– Secondary Discharging Protection: (Current: 150A) (Delay Time: 5s 2s)
– Over Charge Voltage Protection: (Voltage: 29.2V) (Delay Time:500ms)
– Over Discharge Voltage Protection: (Voltage: 21.6V) (Delay Time:500ms)
– Temperature Protection: (PCB Temperature: 115 C) (Recover: 85 C)
– Communication Port: Major RS485, RS232,CAN,Dryport
What’s in the box
1 x SVOLT 25.6V 106Ah Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Ethernet cable
1 x Manual
Series connections
Cycle life (0.2C, 25°C@80% DOD) >6000 Cycles
Max continuous charge current 100A
Recommend Discharge voltage 22.4±0.20V
Max Discharging Voltage 21.6±0.20V
Max Continuous Discharge current 100A
Peak Discharge Current 150A
Package Includes:
- 1x SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery Without Communication CNN2511 (XEA25A) (5 Years Warranty)
- 1x Hybrid Inverter 24v 3.5 Kva 3500w Mppt 60A Inverter Pure Sine Wave – Ecco (5 Years Warranty)
