The Geyserwise 200L PV High Irradiation Solar Water Heating System utilizes advanced technology to efficiently harness solar energy and heat water. With high irradiation capabilities, this system can reduce electricity usage by up to 40%, providing both environmental and cost-saving benefits.
Advantages over thermal hot water systems are as follows
- Any existing geyser can be converted.
- No Additional plumbing is required.
- No pumps necessary to circulate water.
- No risk of damaged panels in frost prone areas.
- The water temperature can be controlled on very hot summer days – reduced risk of overheating in problems.
- Suitable in all water conditions.
- Suitable in areas where the geyser is not situated near the panels.

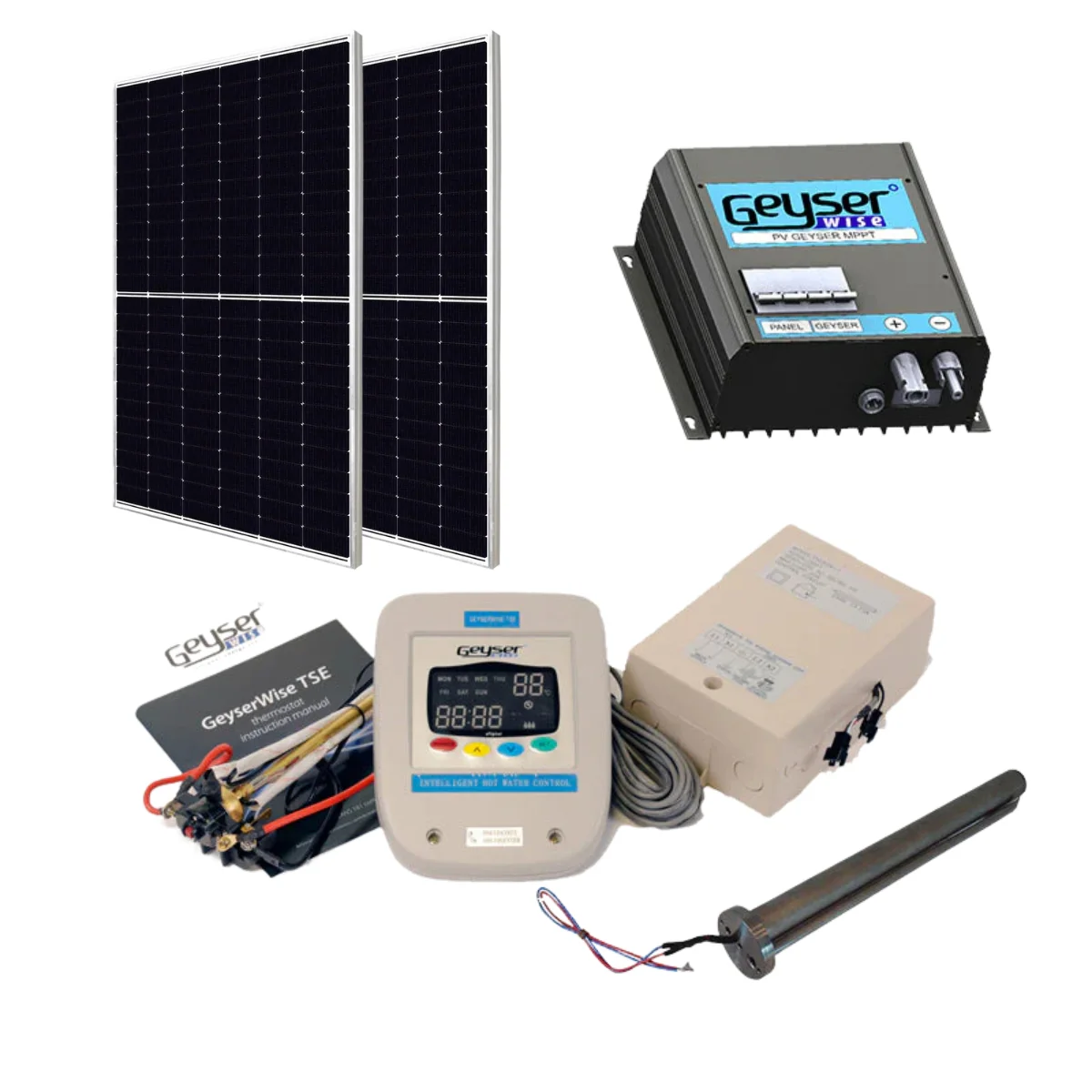

The 200L PV system includes the following components:
- 2 x Canadian 590W Solar Panel
- 1 x 2.0 kW AC (230V). 1100W (72V) DC Element
- 1 x Anderson Connectors (on element)
- 1 x PTC Stainless Steel Sensor Tube (Mounted on Flange)
- 1 x Solar Eco MPPT (72V)
- 1 x Geyserwise TSE Geyser Controller with Wifi
- 1 x Element Connector Cable
- 1 x MC4 Female Connector
- 1 x Pigtail with Male MC4
- 1 x Geyserwise 20A Fuse and Fuseholder
- 1 x 6m Black 6mm Cable with Female MC4 only
- 1 x 6m Red 6mm Cable with Male MC4 only
A complete Roof Mounting System based on your choice above, includes all required rails, clamps and equipment.
GeyserWise MPPT Charge Controller with Element Connector Cable (1.5M)
- Maximum input voltage 150V.
- Peak efficiency 98%.
- Maximum output amps 40 AMPS.
- Ambient temperature Up to 70°C but de-rated at 1 amp per degree at temperatures above 50°C (do not expose to direct sunlight).
- Environmental IP43.
- Indications 3 LED’s.
- Heating (input command from thermostat).
- Tracking (PV active).
- Power (device turned on).
- Inputs/Outputs – and + signal input / GND and 12V output.
- Adjustment MPPT range from 60V to 120V (must = PV Vmp).
Geyserwise TSE Geyser Controller with Wifi
Geyserwise TSE Geyser Controller with Wifi for use in in Thermosyphon Solar Systems and Normal GeysersSmart Wifi Geyser Controller. Download the Tuya Smart App and manage your geyser from your phone anywhere in the world.
